ALIPLAST SLIDE PLUS
Sliding door is a modern and functional door solution available within the Aliplast system. As oppose to traditional side-hung doors, sliding sash opens along the fixed element allowing the system to be used in less spacious room. Slide Plus is thermally insulated light sliding system that can be applied as 2, 3, 4 and 6- element sliding doors. Slide Plus is popular in South and West Europe.
Slide Plus sliding doors

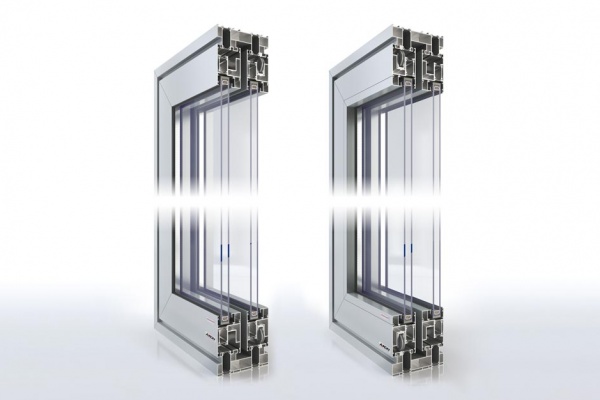

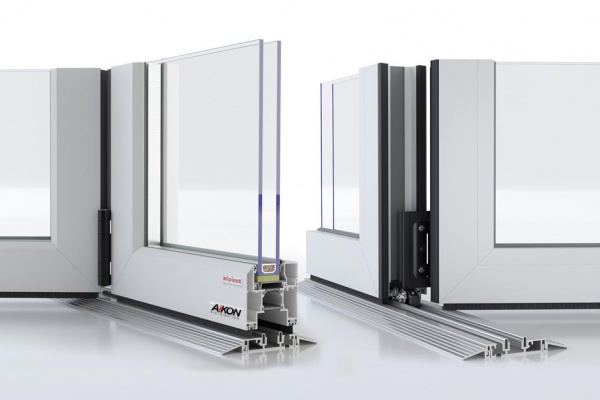

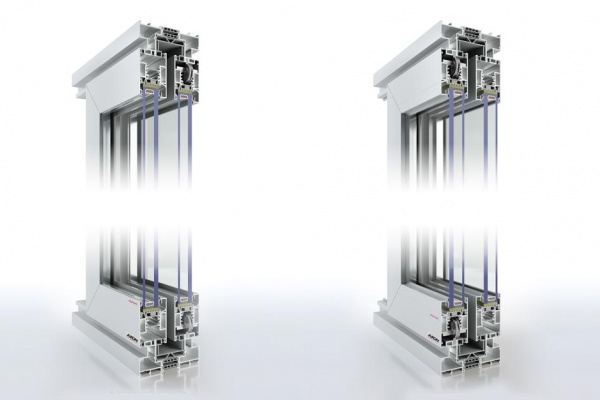

Slide Plus sliding doors consist of three-chamber frame and one-chamber leaf equipped with complex thermal break. The sliding leaf slides on extruded tracks or separate profile designed to accommodate sliding mechanism that is fitted at the bottom of door leaf. Both door sliding solutions are available optionally. Corners of door leaf are joint through the process of curling, while frames can be curled or squeezed. Within the Slide Plus system 24mm infill is used.
Bespoke aluminium windows and doors in accordance with specifications
Our clients can specify dimensions, colours number of sashes and additional profiles. Variety of technical solutions enable production of large dimension windows undertaking the most sophisticated custom orders even when ordering just one window.
Installation depth
59mm
Heat transfer coefficient
Uf = 3,63 W/m2*K
Profile type
warm
Weather stripping
Brush weather seals
Available pane fixations thicknesses
24 mm
Standard glazing
4/16Ar/4 [Rw=32dB, Lt=82%, g=65%]
Standard handle
Standard
Warranty
3 years*
Certificates
CE
Order processing time
from 5 - 8 weeks
*detailed warranty conditions available from your sales representative
Additional parameters
Download technical drawings
Download our catalogue
Sliding door is a modern and functional door solution available within the Aliplast system. As oppose to traditional side-hung doors, sliding sash opens along the fixed element allowing the system to be used in less spacious room. Slide Plus is thermally insulated light sliding system that can be applied as 2, 3, 4 and 6- element sliding doors. Slide Plus is popular in South and West Europe.
Slide Plus sliding doors
Slide Plus sliding doors consist of three-chamber frame and one-chamber leaf equipped with complex thermal break. The sliding leaf slides on extruded tracks or separate profile designed to accommodate sliding mechanism that is fitted at the bottom of door leaf. Both door sliding solutions are available optionally. Corners of door leaf are joint through the process of curling, while frames can be curled or squeezed. Within the Slide Plus system 24mm infill is used.
Bespoke aluminium windows and doors in accordance with specifications
Our clients can specify dimensions, colours number of sashes and additional profiles. Variety of technical solutions enable production of large dimension windows undertaking the most sophisticated custom orders even when ordering just one window.
| Installation depth | 59mm |
| Heat transfer coefficient | Uf = 3,63 W/m2*K |
| Profile type | warm |
| Weather stripping | Brush weather seals |
| Available pane fixations thicknesses | 24 mm |
| Standard glazing | 4/16Ar/4 [Rw=32dB, Lt=82%, g=65%] |
| Standard handle | Standard |
| Warranty | 3 years* |
| Certificates | CE |
| Order processing time | from 5 - 8 weeks |
*detailed warranty conditions available from your sales representative
Additional parameters
Download technical drawings
Download our catalogue
