ALIPLAST IMPERIAL

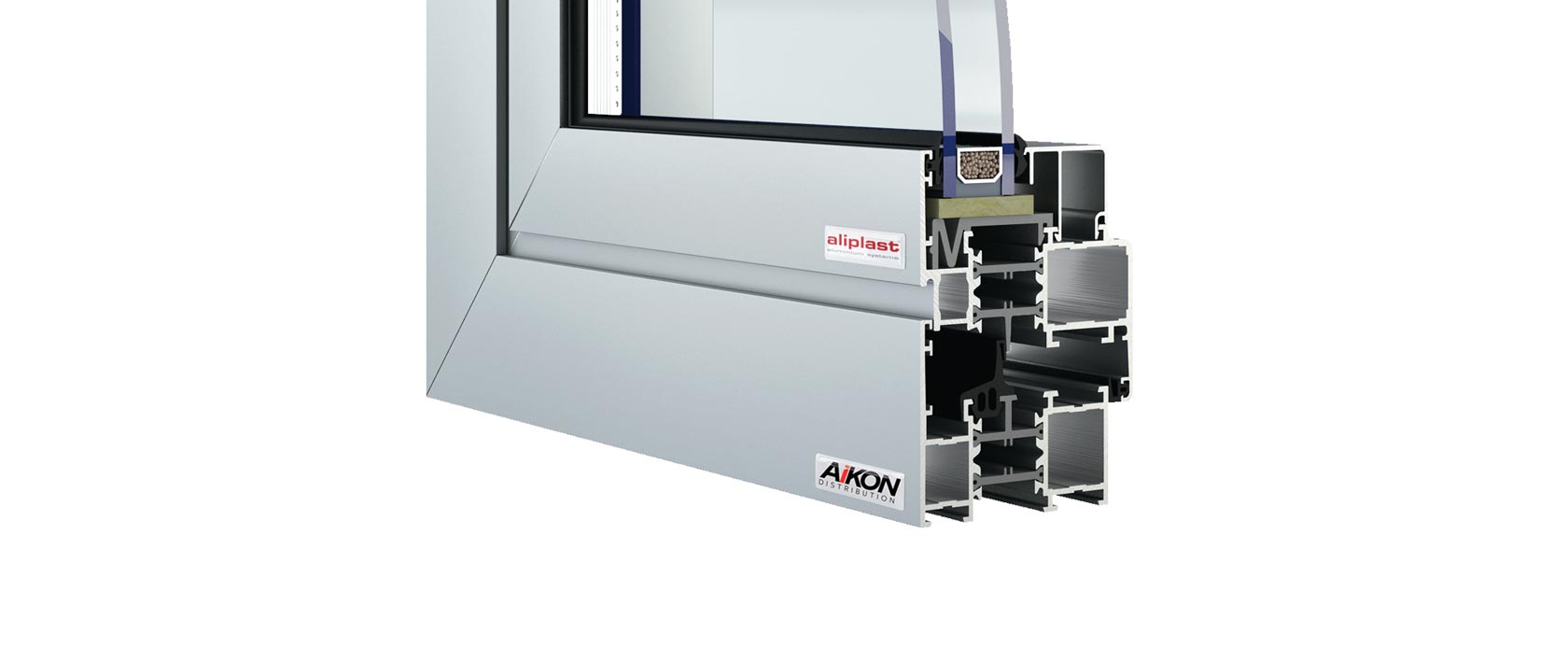

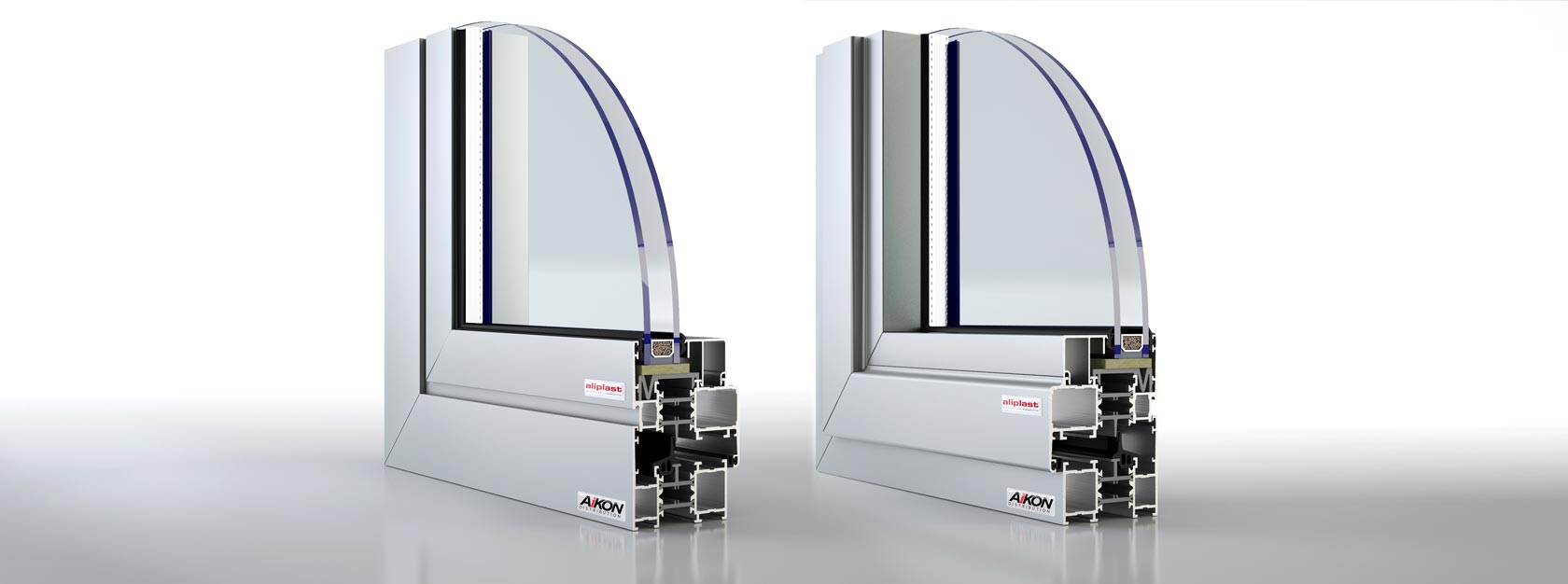

Insulated, three-chamber thermally broken profile designed for display windows, windows and doors.
Aliplast Imperial: insulated aluminum windows
Application of polyamide and fiber glass supported 24mm thermal break enhances durability and thermal insulation of the profile. Heat transfer coefficient for the Imperial profile is Uf = 1,9 W/m2*K.
Modern design of the window - AlIplast Imperial
Modern, metallic material supported by almost limitless palette of RAL colours of smooth or structural finish and wide choice of additional profiles make aluminium doors, windows and large-sized glass and aluminium segments a modern architectural motive.
Deep aluminum profiles
Aliplast Imperial are 65mm installation depth profiles. This is 20mm deeper than industry standard ensuring the profile provides perfect statics giving architects and constructors more flexibility for any project design and application. The Imperial system allows designing large-size constructions.
Aluminum Imperial windows with single or double glass panes
Single glass panes or glazing units of 4 to 51mm are mounted and sealed in the rebates of the sashes with the usage of glazing beads from the aluminum profiles and durable EPDM rubber seals.
Arched, triangular, trapezoidal and circle windows
Our extensive experience allows us to use Aliplast system to manufacture arched, triangular, trapezoidal and circle windows.
Bespoke aluminium windows and doors in accordance with specifications
Our clients can specify dimensions, colours number of sashes and additional profiles. Variety of technical solutions enable production of large dimension windows undertaking the most sophisticated custom orders even when ordering just one window. In our offer you can also find Aluplast windows.
Check out also Aliplast Econoline windows.
The price of Aliplast Imperial is custom calculated for each order.
Installation depth
65mm
Heat transfer coefficient
Uf = 1,9 W/m2*K
Profile type
warm
Weather stripping
Double central with EPDM
Available pane fixations thicknesses
4 mm – 51mm
Standard glazing
4/16Ar/4 (Rw=31dB, Lt=80%, g=63%)
Standard handle
Standard
Warranty
3 years*
Certificates
CE
Order processing time
from 5 - 8 weeks
*detailed warranty conditions available from your sales representative
Additional parameters
Download technical drawings
Download our catalogue
Insulated, three-chamber thermally broken profile designed for display windows, windows and doors.
Aliplast Imperial: insulated aluminum windows
Application of polyamide and fiber glass supported 24mm thermal break enhances durability and thermal insulation of the profile. Heat transfer coefficient for the Imperial profile is Uf = 1,9 W/m2*K.
Modern design of the window - AlIplast Imperial
Modern, metallic material supported by almost limitless palette of RAL colours of smooth or structural finish and wide choice of additional profiles make aluminium doors, windows and large-sized glass and aluminium segments a modern architectural motive.
Deep aluminum profiles
Aliplast Imperial are 65mm installation depth profiles. This is 20mm deeper than industry standard ensuring the profile provides perfect statics giving architects and constructors more flexibility for any project design and application. The Imperial system allows designing large-size constructions.
Aluminum Imperial windows with single or double glass panes
Single glass panes or glazing units of 4 to 51mm are mounted and sealed in the rebates of the sashes with the usage of glazing beads from the aluminum profiles and durable EPDM rubber seals.
Arched, triangular, trapezoidal and circle windows
Our extensive experience allows us to use Aliplast system to manufacture arched, triangular, trapezoidal and circle windows.
Bespoke aluminium windows and doors in accordance with specifications
Our clients can specify dimensions, colours number of sashes and additional profiles. Variety of technical solutions enable production of large dimension windows undertaking the most sophisticated custom orders even when ordering just one window. In our offer you can also find Aluplast windows.
Check out also Aliplast Econoline windows.
The price of Aliplast Imperial is custom calculated for each order.
| Installation depth | 65mm |
| Heat transfer coefficient | Uf = 1,9 W/m2*K |
| Profile type | warm |
| Weather stripping | Double central with EPDM |
| Available pane fixations thicknesses | 4 mm – 51mm |
| Standard glazing | 4/16Ar/4 (Rw=31dB, Lt=80%, g=63%) |
| Standard handle | Standard |
| Warranty | 3 years* |
| Certificates | CE |
| Order processing time | from 5 - 8 weeks |
*detailed warranty conditions available from your sales representative
Additional parameters
Download technical drawings
Download our catalogue
