thermally broken aluminium dors
thermally broken windows

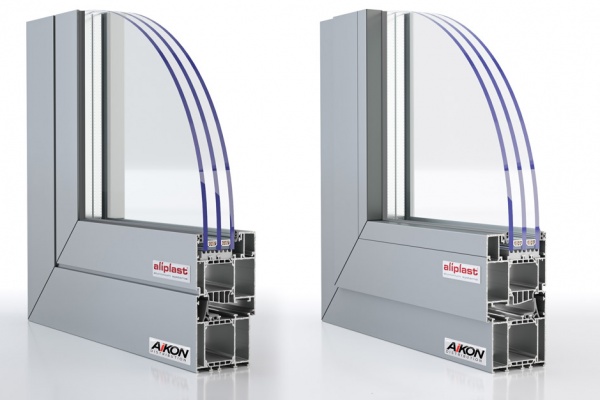

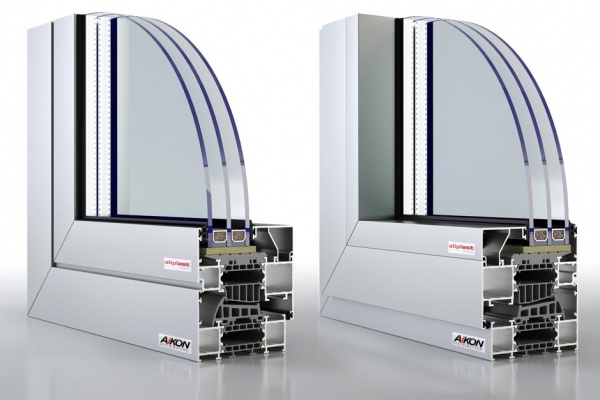

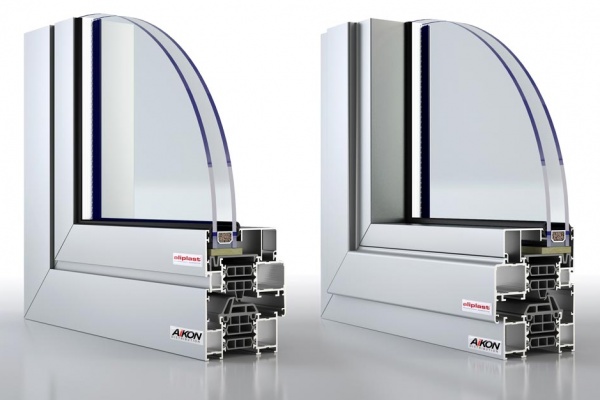

Insulated, three-chamber thermally broken windows profile designed for display windows, windows and doors. Imperial profile allows to manufacture outward or inward opening doors, single and double leaf doors, side light doors, sliding doors and revolving doors.

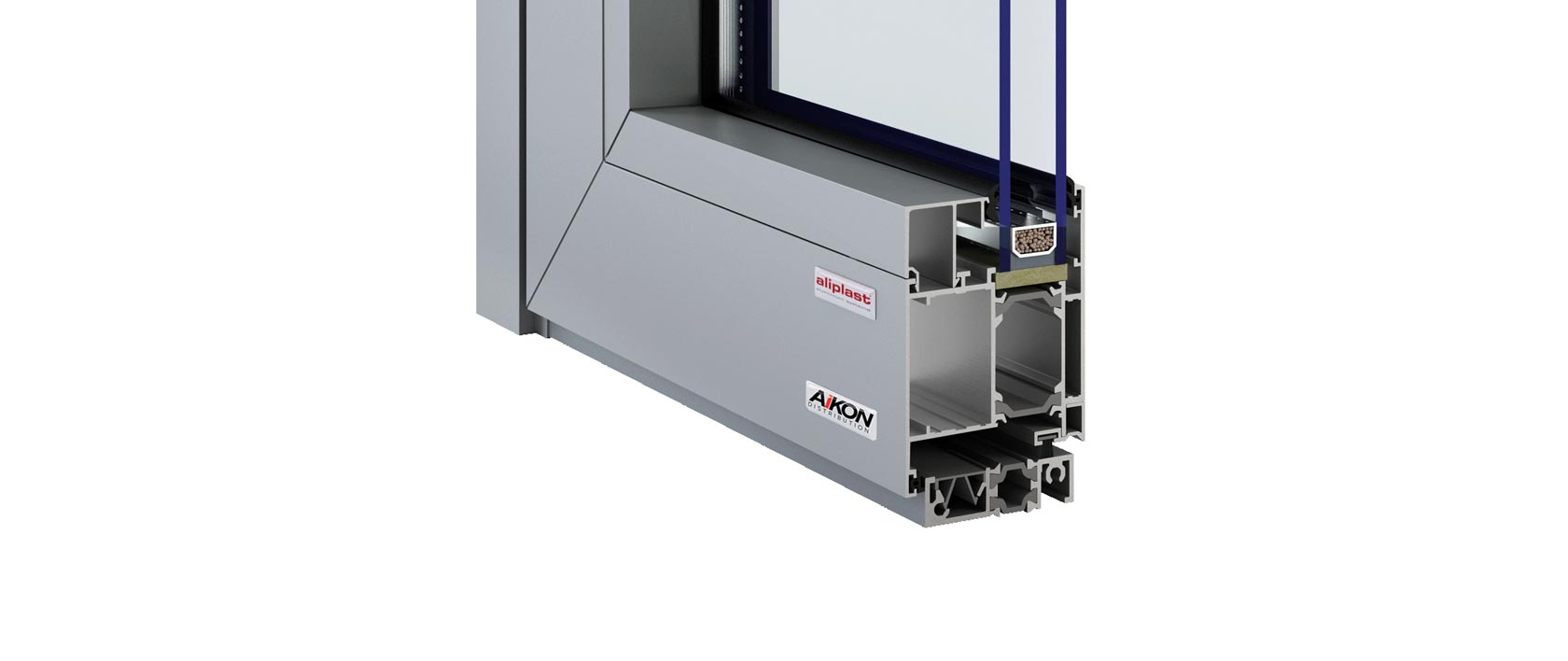

Thermally broken aluminium doors

Application of polyamide and fiber glass supported 24mm thermal break enhances durability and thermal insulation of the profile. Heat transfer coefficient for the Imperial doors profile is Uf = 2,0 W/m2*K.

Modern design

Modern, metallic material supported by almost limitless palette of RAL colours of smooth or structural finish and wide choice of additional profiles make aluminium doors, windows and large-sized glass and aluminium segments a modern architectural motive.

Deep aluminum profiles

Imperial are 65mm installation depth profiles.This is 20mm deeper than industry standard ensuring the profile provides perfect statics  giving architects and constructors more flexibility for any project design and application. The Imperial system allows designing large-size constructions.

Insulated aluminium doors with single or double glass panes

Single glass panes or glazing units of 4 to 51mm are mounted and sealed in the rebates of the sashes with the usage of glazing beads from the aluminum profiles and durable EPDM rubber seals.

Bespoke aluminium windows and doors in accordance with specifications

Our clients can specify dimensions, colours number of sashes and additional profiles. Variety of technical solutions enable production of large dimension windows undertaking the most sophisticated custom orders even when ordering just one window.

Installation depth  65mm
Heat transfer coefficient  Uf = 1,6 W/m2*K
Profile type  warm
Weather stripping  Double central with EPDM
Available pane fixations thicknesses  4 mm - 51 mm
Standard glazing  4/16Ar/4 (Rw=31dB, Lt=80%, g=63%)
Standard handle  Standard
Warranty  3 years*
Certificates  CE
Order processing time  from 5 - 8 weeks
*detailed warranty conditions available from your sales representative

Additional parameters

Window colors
Additional profiles and accessories
Ornamental window panes
Windows with roller shutters
