ALIPLAST ECONOLINE
Non-insulated, three-chamber Aliplast Econoline profiles are designed for construction of external and internal wall partitions consisting of glazed and fixed elements, doors and windows.
Glazed wall partitions
The Econoline profile is designed for the construction of glazed segments of wall partitions for commercial and industrial buildings. These segments may be combined with system windows and side-hung, sliding and double swing doors.
Modern design of the window
Modern, metallic material supported by almost limitless palette of RAL colours of smooth or structural finish and wide choice of additional profiles make aluminium doors, windows and large-sized glass and aluminium segments a modern architectural motive.

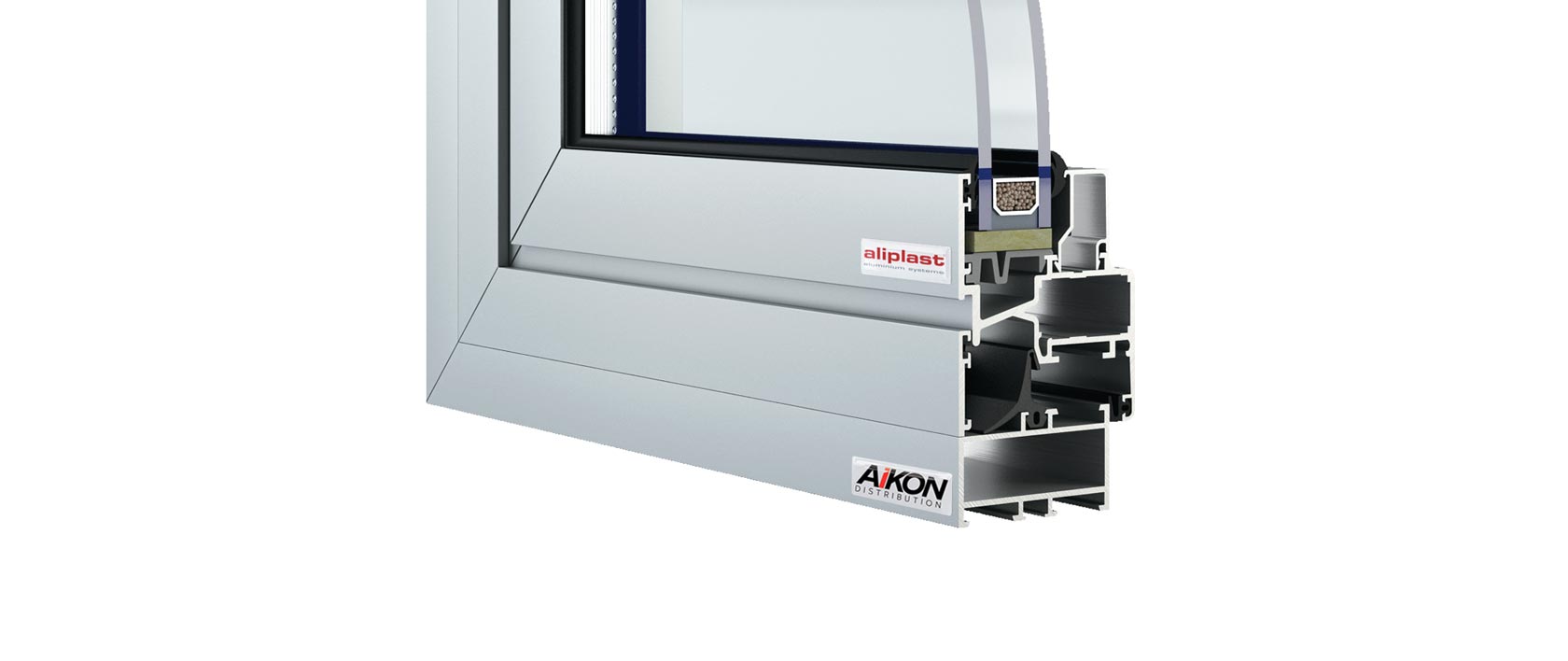

Deep aluminum profiles
Aliplast Econoline windows are 51mm installation depth profiles. This is 6mm deeper than industry standard, giving architects and constructors more flexibility for any project design and application.

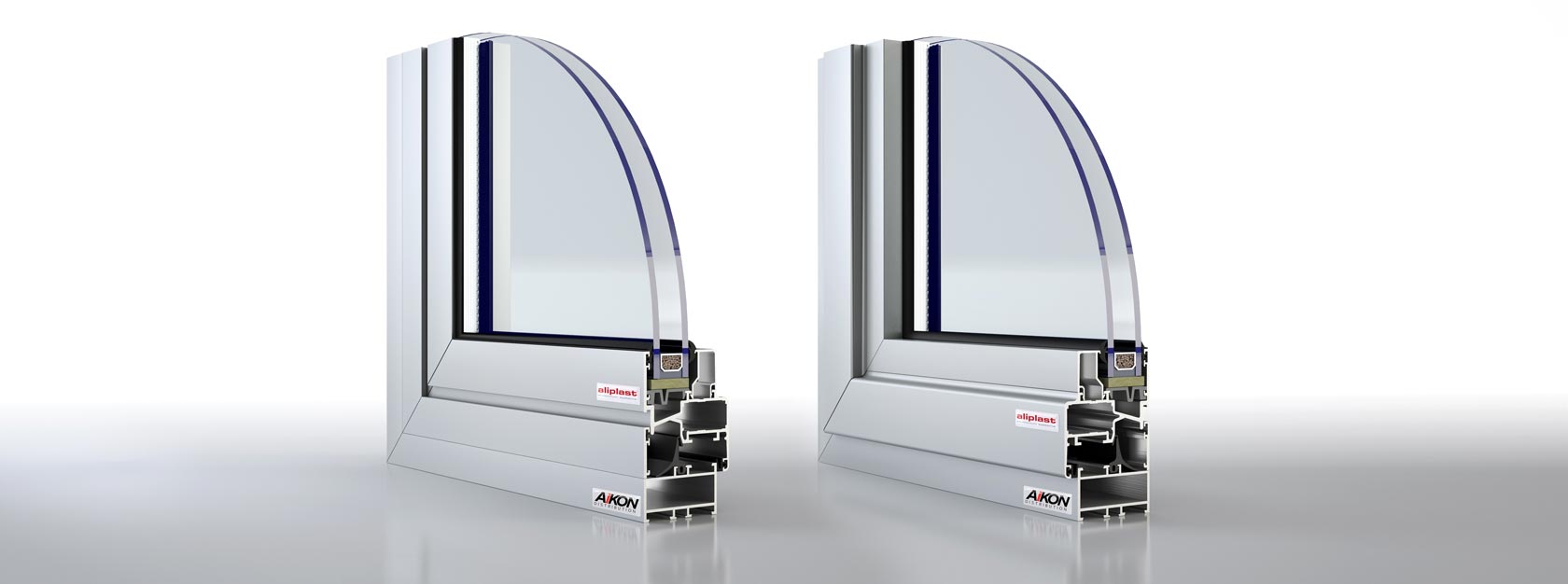

Aluminum Econoline windows with single or double glass panes
Single glass panes or glazing units of 3 up to 38mm are mounted and sealed in the rebates of the sashes with the usage of glazing beads from the aluminum profiles and durable EPDM rubber seals.
Arched, triangular, trapezoidal and circle windows
Our extensive experience allows us to use Aliplast system to manufacture arched, triangular, trapezoidal and circle windows.
Bespoke aluminium windows and doors in accordance with specifications
Our clients can specify dimensions, colours number of sashes and additional profiles. Variety of technical solutions enable production of large dimension windows undertaking the most sophisticated custom orders even when ordering just one window.
Check out also Aliplast Superial doors.
Aliplast Econoline Installation depth
51mm
Heat transfer coefficient
Lack of research - cold profile
Profile type
cold
Weather stripping
Double central with EPDM
Available pane fixations thicknesses
4 mm - 37 mm
Standard glazing
4/16Ar/4 [Rw=32dB, Lt=82%, g=65%]
Standard handle
Standard
Warranty
3 years*
Certificates
CE
Order processing time
from 5 - 8 weeks
*detailed warranty conditions available from your sales representative
Additional parameters
Download technical drawings
Download our catalogue
