ALIPLAST PANORAMA
System designed for large, bifolding door structures. Panorama doors may consist of many panel configurations, opened to the inside or to the outside.
Panorama Aliplast

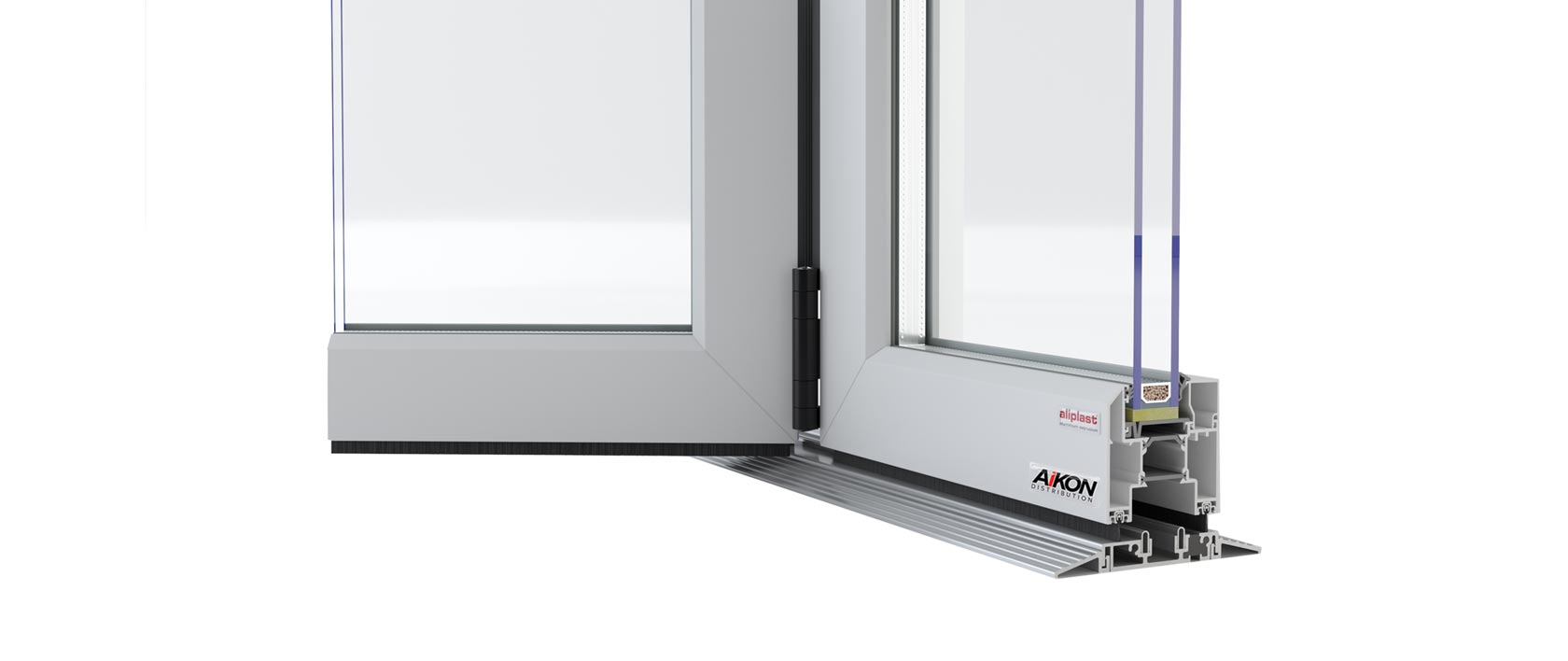

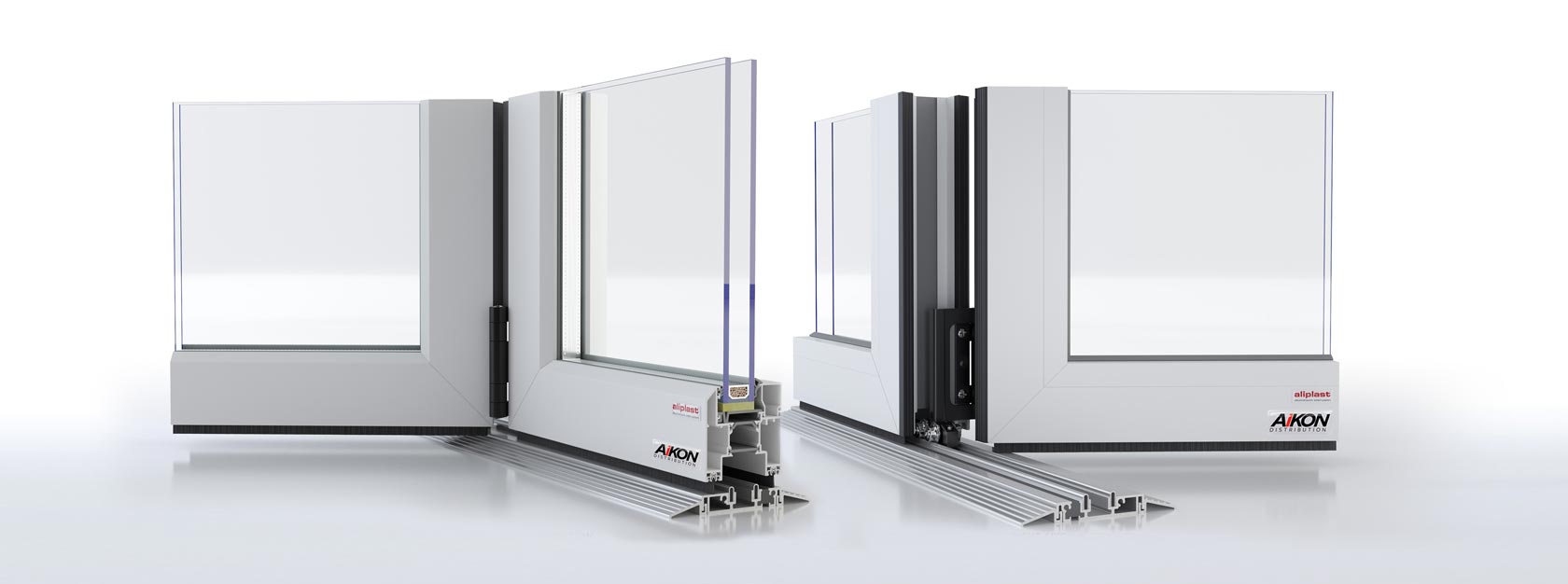

Panorama doors is a 3-chamber system with increased thermal insulation (with special thermal inserts), additional EPDM rubber solid gaskets and brushes protecting against harmful atmospheric factors. For safety and comfort of use, the weight of a single door leaf should not exceed 80kg and its maximum dimensions are 1000mm width and 2200mm height.
Depending on the possibilities of the design or the needs of a client, the system may be manufactured with a low threshold or aluminium door frame threshold.
Gain space and light Aliplast Panorama

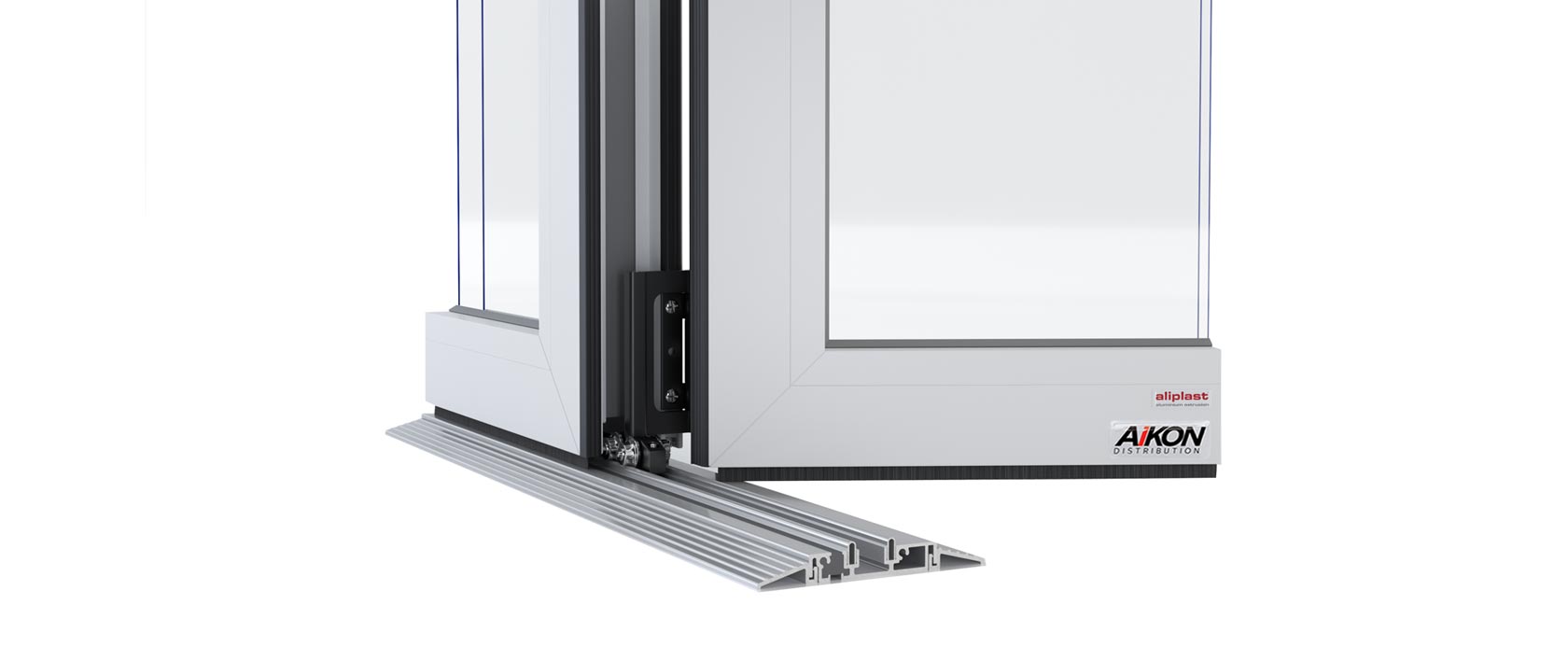

Bifold door panels are system hardware connected ensuring smooth operation and allowing wider unobstructed openings. The innovative steel rolls additionally improve operation and control over the entire opening system. As a result, Panorama is a modern, bifolding doors system installed as balcony doors, terrace doors, applied for orangeries or conservatories. Panorama doors could also be installed for commercial facilities, restaurants and hotels.
Bifolding aluminium doors in accordance with specifications
Our clients can specify dimensions, colours number of sashes and additional profiles. Variety of technical solutions enable production of large dimension windows undertaking the most sophisticated custom orders even when ordering just one window. In our offer you will also find Rehau PVC.
Installation depth
74,5mm
Heat transfer coefficient
Uf = 1,68 W/m2*K
Weather stripping
EPDM
Available pane fixations thicknesses
16 mm - 50 mm
Standard glazing
4/16Ar/4 (Rw=31dB, Lt=80%, g=63%)
Standard handle
Standard
Warranty
3 years*
Certificates
CE
Order processing time
from 5 - 8 weeks
*detailed warranty conditions available from your sales representative
Additional parameters
Download technical drawings
Download our catalogue
System designed for large, bifolding door structures. Panorama doors may consist of many panel configurations, opened to the inside or to the outside.
Panorama Aliplast
Panorama doors is a 3-chamber system with increased thermal insulation (with special thermal inserts), additional EPDM rubber solid gaskets and brushes protecting against harmful atmospheric factors. For safety and comfort of use, the weight of a single door leaf should not exceed 80kg and its maximum dimensions are 1000mm width and 2200mm height.
Depending on the possibilities of the design or the needs of a client, the system may be manufactured with a low threshold or aluminium door frame threshold.
Gain space and light Aliplast Panorama
Bifold door panels are system hardware connected ensuring smooth operation and allowing wider unobstructed openings. The innovative steel rolls additionally improve operation and control over the entire opening system. As a result, Panorama is a modern, bifolding doors system installed as balcony doors, terrace doors, applied for orangeries or conservatories. Panorama doors could also be installed for commercial facilities, restaurants and hotels.
Bifolding aluminium doors in accordance with specifications
Our clients can specify dimensions, colours number of sashes and additional profiles. Variety of technical solutions enable production of large dimension windows undertaking the most sophisticated custom orders even when ordering just one window. In our offer you will also find Rehau PVC.
| Installation depth | 74,5mm |
| Heat transfer coefficient | Uf = 1,68 W/m2*K |
| Weather stripping | EPDM |
| Available pane fixations thicknesses | 16 mm - 50 mm |
| Standard glazing | 4/16Ar/4 (Rw=31dB, Lt=80%, g=63%) |
| Standard handle | Standard |
| Warranty | 3 years* |
| Certificates | CE |
| Order processing time | from 5 - 8 weeks |
*detailed warranty conditions available from your sales representative
Additional parameters
Download technical drawings
Download our catalogue
