ALIPLAST DOOR GENESIS 75
GENESIS 75 is a three-chamber system for constructing windows and doors with increased thermal insulation. Thanks to the use of modern insulation materials and an additional thermal seal, it meets the building requirements for thermal transfer valid from 2021 (Uw from 0.90).
MODERN THERMAL INSULATION MATERIALS

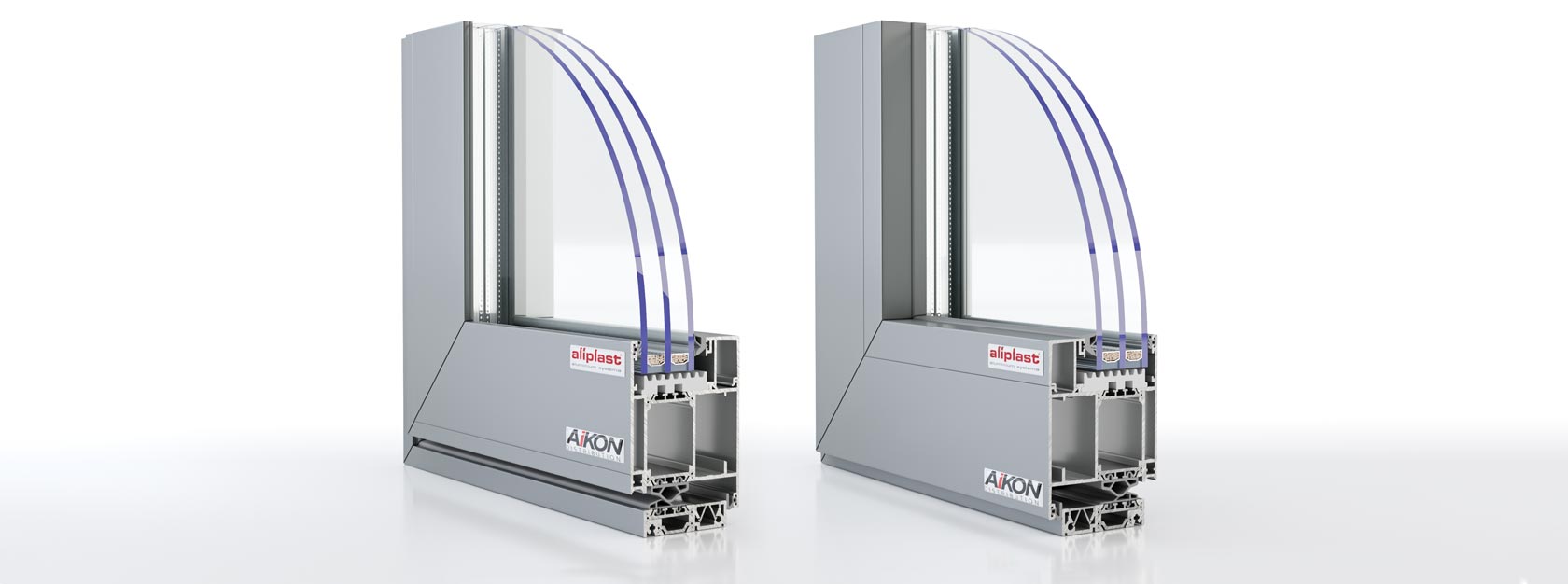

The basis of this system is frame sections with a depth of 75 mm, which make it possible to design windows, doors and display windows with very high functionality.
The GENESIS 75 system also uses modern insulation materials. In addition to the classic central seal, an additional thermal seal has been designed. This solution resulted in very high window tightness (air infiltration, water tightness) and an innovative look and aesthetics.
GENESIS ALUMINIUM DOORS
The door can use a drop threshold, a low threshold or a solution without a threshold (with a seal). In GENESIS 75, both single-leaf and double-leaf doors opening outwards and inwards are available.
Maximum construction dimensions: 1404 x 2810 mm (for single-leaf doors) and 2500 x 2500 mm (for double-leaf doors).
GENESIS aluminium windows and doors
GENESIS 75 is a system for the design of window and door constructions in both public buildings and single and multi-family housing. The GENESIS 75 window and door system also includes aluminium panel doors, which are sure to be a beautiful decoration for any private home.
* The GENESIS 75 aluminium door is fully compatible with the other options of this system. In addition, this system is available with basic and increased thermal insulation.
MADE-TO-MEASURE ALUMINIUM DOORS
At Aikon Distribution, all products are made to special order and to the specifications of the customer, who can specify, among other things, the dimensions, colour, shape and accessories of the ordered goods.
Installation depth
75mm
Heat transfer coefficient
Uf = 1.6 W / m2 * K
Profile type
warm
Weather stripping
Double central with EPDM
Available pane fixations thicknesses
1 mm – 59 mm
Standard glazing
4/16Ar/4 [Rw=32dB, Lt=82%, g=65%]
Standard handle
Standard
Warranty
3 years*
Certificates
CE
Order processing time
from 5 - 8 weeks
*detailed warranty conditions available from your sales representative
Additional parameters
Download technical drawings
Download our catalogue
GENESIS 75 is a three-chamber system for constructing windows and doors with increased thermal insulation. Thanks to the use of modern insulation materials and an additional thermal seal, it meets the building requirements for thermal transfer valid from 2021 (Uw from 0.90).
MODERN THERMAL INSULATION MATERIALS
The basis of this system is frame sections with a depth of 75 mm, which make it possible to design windows, doors and display windows with very high functionality.
The GENESIS 75 system also uses modern insulation materials. In addition to the classic central seal, an additional thermal seal has been designed. This solution resulted in very high window tightness (air infiltration, water tightness) and an innovative look and aesthetics.
GENESIS ALUMINIUM DOORS
The door can use a drop threshold, a low threshold or a solution without a threshold (with a seal). In GENESIS 75, both single-leaf and double-leaf doors opening outwards and inwards are available.
Maximum construction dimensions: 1404 x 2810 mm (for single-leaf doors) and 2500 x 2500 mm (for double-leaf doors).
GENESIS aluminium windows and doors
GENESIS 75 is a system for the design of window and door constructions in both public buildings and single and multi-family housing. The GENESIS 75 window and door system also includes aluminium panel doors, which are sure to be a beautiful decoration for any private home.
* The GENESIS 75 aluminium door is fully compatible with the other options of this system. In addition, this system is available with basic and increased thermal insulation.
MADE-TO-MEASURE ALUMINIUM DOORS
At Aikon Distribution, all products are made to special order and to the specifications of the customer, who can specify, among other things, the dimensions, colour, shape and accessories of the ordered goods.
| Installation depth | 75mm |
| Heat transfer coefficient | Uf = 1.6 W / m2 * K |
| Profile type | warm |
| Weather stripping | Double central with EPDM |
| Available pane fixations thicknesses | 1 mm – 59 mm |
| Standard glazing | 4/16Ar/4 [Rw=32dB, Lt=82%, g=65%] |
| Standard handle | Standard |
| Warranty | 3 years* |
| Certificates | CE |
| Order processing time | from 5 - 8 weeks |
*detailed warranty conditions available from your sales representative
Additional parameters
Download technical drawings
Download our catalogue
