uPVC made-to-measure lift and slide doors Salamander HST
uPVC made-to-measure lift and slide doors Salamander HST

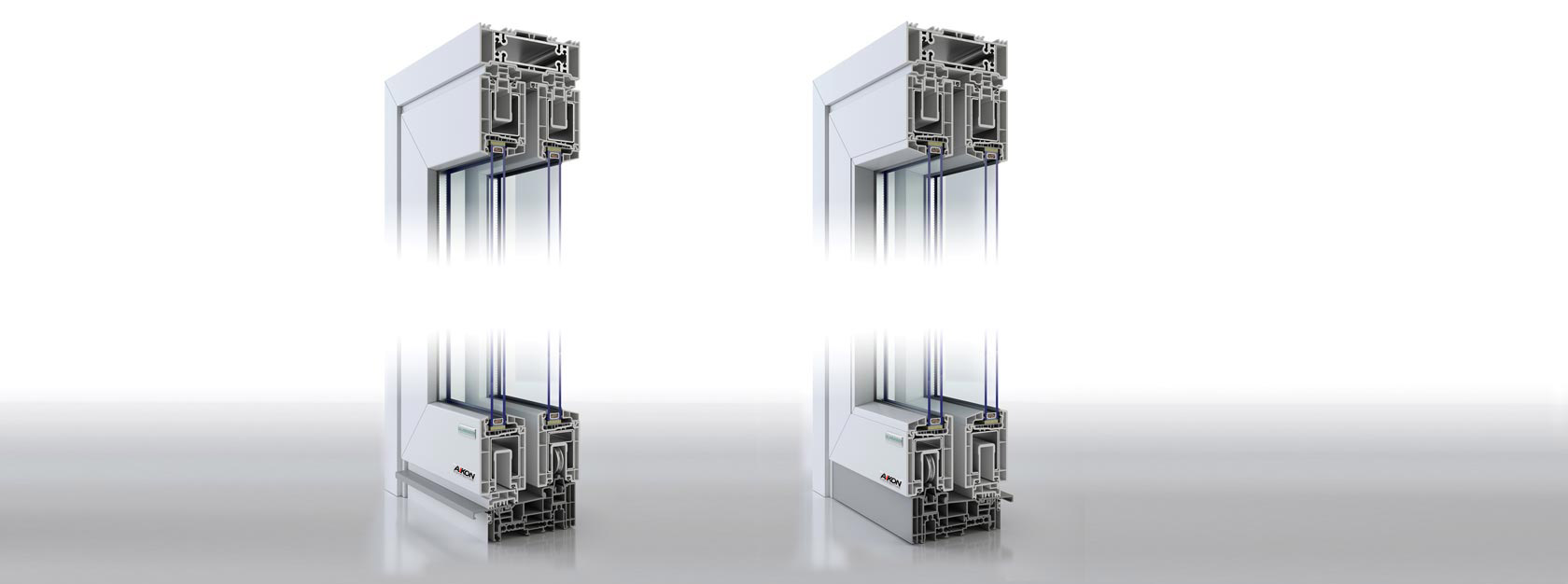

The Salamander HST EVOLUTION DRIVE profile is dedicated for large-glazed, sliding doors applications. HST offers innovative solution for offices, industrial facilities, modern residential buildings, etc. Design is based on a 194mm frame profile and a sash matching parameters of the Salamander BLUEVOLUTION 82.

Lightweight and functionality

The system moves on aluminium rail tracks. Design of the sliding mechanism allows heavy doors (weight up to 400 kg) to be moved without any effort. The advantage of a sliding door is that they can be installed with no extra space required to open the door leaf as they just slide along each other.

State-of-the-art solutions

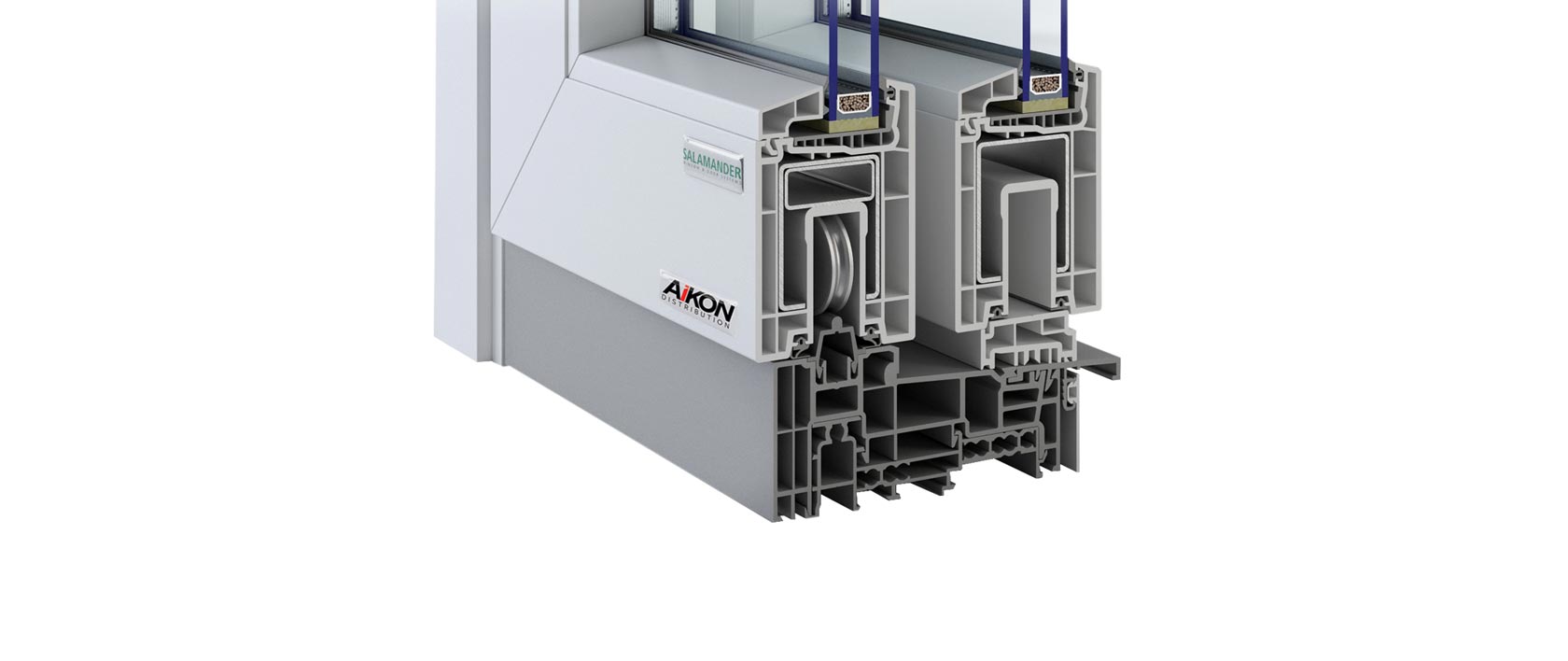

The HST Salamander system with frame installation depth of 194 mm and leaf depth of 76 mm can be used to construct doors with a height up to 2.5 m and a width up to 6 m. Its universal design is a perfect fit in modern and demanding structures.

uPVC made-to-measure doors

Our clients can specify dimensions, colours number of sashes and additional profiles. Variety of technical solutions enable production of large dimension windows undertaking the most sophisticated custom orders even when ordering just one doors.

Images are for reference purposes only.

Installation depth  194mm
Number of chambers  5 chambers
Heat transfer coefficient  Uf = 1,4 W/m2*K
Profile class  B
Weather stripping  Double external, grey/black
Available pane fixations thicknesses  24 mm - 52 mm
Standard glazing  4/16Ar/4 (Rw=32dB, Lt=80%, g=63%)
Standard handle  Standarhandle
Steel thickness  1,5 - 2,0 mm
Dyed profile core for 2s colors  Yes: Brown, White, caramel
Warranty  2 years*
Certificates  CE, CEKAL (glazing)
Order processing time  from 2 weeks
*detailed warranty conditions available from your sales representative

Additional parameters

Window colors
Additional profiles and accessories
Ornamental window panes
Windows with roller shutters

Download technical drawings
