Aluplast ID 5000/RL
Window profile for demanding customers. Aluplast Ideal 5000 tilt and turn combines modern design with excellent technical performance. The profile is dedicated to energy-efficient buildings.
Aluplast Ideal 5000 - Classic and Round-line Designs
The simple shape of the sash works well with modern buildings, while the Round-Line rounded sash fits seamlessly with classic facades, making it a versatile choice.
Energy-efficient and durable window profiles
Low heat transfer coefficient is achieved through the use of triple sealing unit supported by appropriate insulating glazing unit. Addition of central, high resistance EPDM rubber seal creates “dry chamber” – space between frame and sash that occurs when window is closed within which hardware operates. Window profile Aluplast 5000 Dry chamber increases durability of hardware, offering protection against outside moisture. Solid steel reinforcements mounted in sufficiently large chambers guarantee optimum statics of windows including large-size constructions.
Greater comfort and esthetics with Ideal 5000 Aluplast
The triple-glazing unit and high-quality centre seal enhance the sound insulation properties of Aluplast 5000 tilt and turn windows, making them ideal for buildings in noisy environments. The almost invisible seals further emphasize the sleek and modern aesthetics of the window.
Arched, triangular, trapezoidal and circle windows
Our extensive experience allows us to use Aluplast system to manufacture arched, triangular, trapezoidal and circle windows.
uPVC made-to-measure windows
Our clients can specify the dimensions, colours, number of sashes, and additional profiles for their Aluplast 5000 windows. A variety of technical solutions enables us to produce large dimension windows and accommodate even the most sophisticated custom orders, even for a single window.
Check Also: Aluplast NEW 4000 85mm.

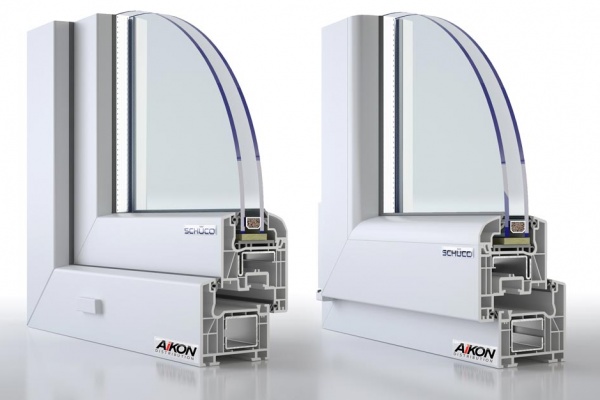

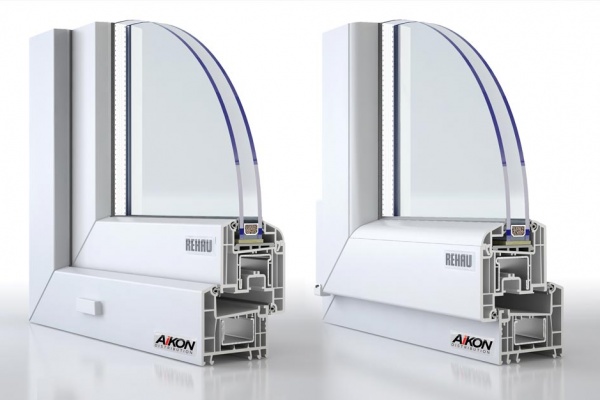

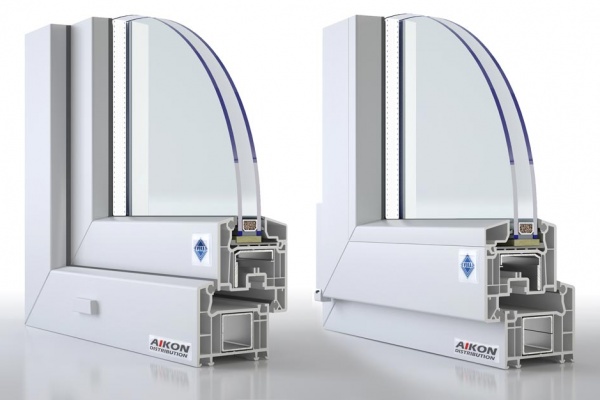

Images are for reference purposes only.
Installation depth
70mm
Number of chambers
5 chambers
Heat transfer coefficient
Uf = 1,2 W/m2*K
Profile class
B
Weather stripping
Triple central with EPDM, grey/black
Available pane fixations thicknesses
24 mm - 41 mm
Standard glazing
4/16Ar/4 (Rw=32dB, Lt=80%, g=63%)
Standard handle
Hoppe Secustic
Steel thickness
1,5 - 2,0 mm (enclosed in a frame)
Dyed profile core for 2s colors
Yes: brown or white core under the veneer
Warranty
5 years for the whole window
Certificates
CE
Order processing time
from 2 weeks
Additional parameters
Download technical drawings
Download our catalogue
Window profile for demanding customers. Aluplast Ideal 5000 tilt and turn combines modern design with excellent technical performance. The profile is dedicated to energy-efficient buildings.
Aluplast Ideal 5000 - Classic and Round-line Designs
The simple shape of the sash works well with modern buildings, while the Round-Line rounded sash fits seamlessly with classic facades, making it a versatile choice.
Energy-efficient and durable window profiles
Low heat transfer coefficient is achieved through the use of triple sealing unit supported by appropriate insulating glazing unit. Addition of central, high resistance EPDM rubber seal creates “dry chamber” – space between frame and sash that occurs when window is closed within which hardware operates. Window profile Aluplast 5000 Dry chamber increases durability of hardware, offering protection against outside moisture. Solid steel reinforcements mounted in sufficiently large chambers guarantee optimum statics of windows including large-size constructions.
Greater comfort and esthetics with Ideal 5000 Aluplast
The triple-glazing unit and high-quality centre seal enhance the sound insulation properties of Aluplast 5000 tilt and turn windows, making them ideal for buildings in noisy environments. The almost invisible seals further emphasize the sleek and modern aesthetics of the window.
Arched, triangular, trapezoidal and circle windows
Our extensive experience allows us to use Aluplast system to manufacture arched, triangular, trapezoidal and circle windows.
uPVC made-to-measure windows
Our clients can specify the dimensions, colours, number of sashes, and additional profiles for their Aluplast 5000 windows. A variety of technical solutions enables us to produce large dimension windows and accommodate even the most sophisticated custom orders, even for a single window.
Check Also: Aluplast NEW 4000 85mm.
Images are for reference purposes only.
| Installation depth | 70mm |
| Number of chambers | 5 chambers |
| Heat transfer coefficient | Uf = 1,2 W/m2*K |
| Profile class | B |
| Weather stripping | Triple central with EPDM, grey/black |
| Available pane fixations thicknesses | 24 mm - 41 mm |
| Standard glazing | 4/16Ar/4 (Rw=32dB, Lt=80%, g=63%) |
| Standard handle | Hoppe Secustic |
| Steel thickness | 1,5 - 2,0 mm (enclosed in a frame) |
| Dyed profile core for 2s colors | Yes: brown or white core under the veneer |
| Warranty | 5 years for the whole window |
| Certificates | CE |
| Order processing time | from 2 weeks |
Additional parameters
Download technical drawings
Download our catalogue
