Integrated roller shutters Opoterm

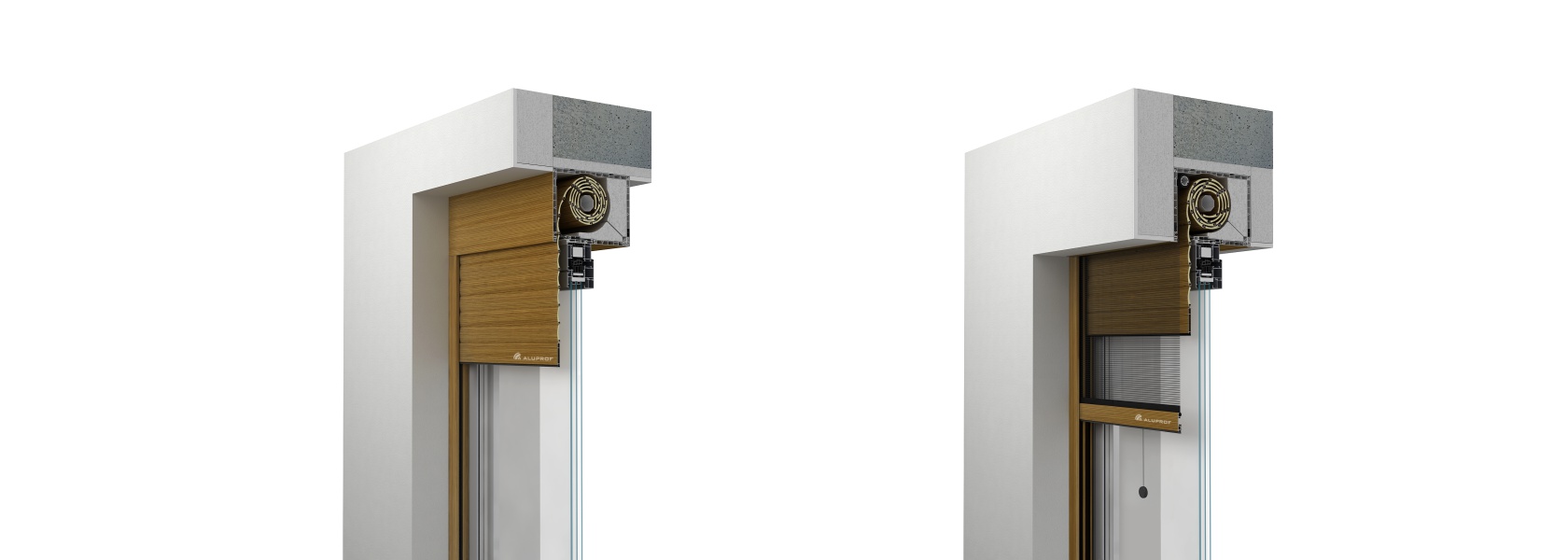

Exterior, integrated roller shutters
Exterior roller shutters are a convenient solution, applied in already commissioned buildings and those in construction. Maintenance of the roller shutters is from the inside of the apartment.
Custom sized roller shutters
Opoterm system enables the production of roller shutters adjusted to the size of a window. Maximal size of the Opoterm curtain is 9 m2.
The roller shutter can be easy assembled
A possibility of combining the window with the roller shutter, makes the work easier for the fitter.
Exterior roller shutters with insect screen
Opoterm system makes it possible to combine a roller shutter with an insect screen. Grey-colored screen places itself on the internal side of the curtain.
Producer of roller shutters – Aluprof
Aluprof S.A. belongs to a leading European producers of aluminum systems for building industry. In the area, of a size close to 80.000 m2, high-tech production lines of profiles and roller shutter boxes and modern, fully-automated line for powder coating are located.
Roller shutter type
integrated
Inspection cover
front or bottom of the box
Box
Straight shape 90°, pvc
Box: width x height (mm)
230x170, 230x210, 255x240
Box with insect screen: width x height (mm)
230x170, 230x210, 255x240
Curtain
Aluprof
Guide
pvc, alu
Insect screen
optional: exterior curtain side
Due date
from 2 weeks
Curtain coloring
Aluprof colors
Box and guides coloring
Aluprof (selected colors), RAL colors (for alu guides)
Maximum depth of window’s frame
102 mm (bottom inspection cover) or 170 mm (front inspection cover)
Certificate
CE
Roller shutter curtains
Control systems
Roller shutters with manual control system: mini belt roller, white or brown, is available as a standard.
Download technical drawings
Exterior, integrated roller shutters
Exterior roller shutters are a convenient solution, applied in already commissioned buildings and those in construction. Maintenance of the roller shutters is from the inside of the apartment.
Custom sized roller shutters
Opoterm system enables the production of roller shutters adjusted to the size of a window. Maximal size of the Opoterm curtain is 9 m2.
The roller shutter can be easy assembled
A possibility of combining the window with the roller shutter, makes the work easier for the fitter.
Exterior roller shutters with insect screen
Opoterm system makes it possible to combine a roller shutter with an insect screen. Grey-colored screen places itself on the internal side of the curtain.
Producer of roller shutters – Aluprof
Aluprof S.A. belongs to a leading European producers of aluminum systems for building industry. In the area, of a size close to 80.000 m2, high-tech production lines of profiles and roller shutter boxes and modern, fully-automated line for powder coating are located.
| Roller shutter type | integrated |
| Inspection cover | front or bottom of the box |
| Box | Straight shape 90°, pvc |
| Box: width x height (mm) | 230x170, 230x210, 255x240 |
| Box with insect screen: width x height (mm) | 230x170, 230x210, 255x240 |
| Curtain | Aluprof |
| Guide | pvc, alu |
| Insect screen | optional: exterior curtain side |
| Due date | from 2 weeks |
| Curtain coloring | Aluprof colors |
| Box and guides coloring | Aluprof (selected colors), RAL colors (for alu guides) |
| Maximum depth of window’s frame | 102 mm (bottom inspection cover) or 170 mm (front inspection cover) |
| Certificate | CE |
Roller shutter curtains
Control systems
Roller shutters with manual control system: mini belt roller, white or brown, is available as a standard.
Download technical drawings
