Horizontal roll-up insect screen

Horizontal roll-up insect screen

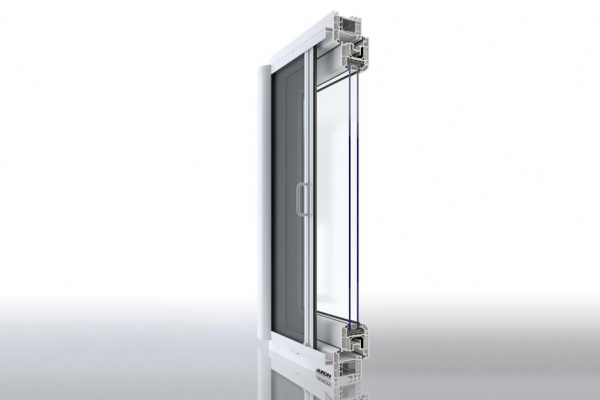

Horizontal roll-up insect screen is an ideal solution for terrace and balcony doors. It has a built-in side cassette that hides the entire net, and thanks to a convenient handle it can be easily pulled apart.

Design of horizontal roll-up insect screen (mosquito)

The 49 mm high insect screen cassette and the 32 mm high guides are made of extruded aluminium. The insect screen frame is resistant to bending and damage. The cassette roller has a spring system. The net is made of glass fibre in grey or black colour, thanks to which the material does not bend or fold and effectively protects against insects and dirt.

Using a roll-up insect screen

When rolled out, the net is fixed laterally thanks to a magnetic strip in the side frame. After releasing the net from its strip, the insect screen retarder enables the net to wind smoothly in the cassette without being damaged (option available at extra charge).

Custom size roll-up insect screen

The size of an insect screen frame is selected individually to the size of the door and window. The vertical roll-up insect screen has a maximum surface area of 3.6 m². The maximum height is 2400 mm and the width is 1500 mm.

Insect screen type

horizontal roll-up insect screen

Maximum area

3,6 m²

Maximum width

1500 mm

Maximum height

2400 mm

Colours of frame/transom RAL colour palette

Double-leaf insect screens are optionally available.


Mounting type/measurement - horizontal roll-up insect screen

Colors - horizontal roll-up insect screen

Insect screen accessories
