VEKA SOFTLINE 82 MD
The highest level of thermal insulation makes Veka Softline 82 MD a perfect solution for energy-efficient and passive buildings.
VEKA Softline 82 uPVC windows - class A profiles
All VEKA window profiles are classified according to PN-EN 12608 norm as the highest Class A. This classification confirms the thickness of the outer wall of the profiles of 3 mm (with a tolerance of 0.2 mm). Class A profiles perfectly protect against heat loss and noise and also increase the stability and durability of windows. According to the studies class A profile corners are 10-20% more resistant to damage.
Energy-efficient windows for passive houses
Excellent thermal insulation performance has been achieved through the use of 7-chambers, 82mm installation depth of profile. Thickness of profile walls is impressive 3mm. Heat transfer coefficient for the profile is rated at 1.0 W/m2*K, thermal insulation for the whole window can be increased to Uw = 0.85W/m2*K when the thickest available triple-glazed unit and a triple gasket made of high quality EPDM is used. Veka Softline 82 MD windows can be successfully used in passive buildings.

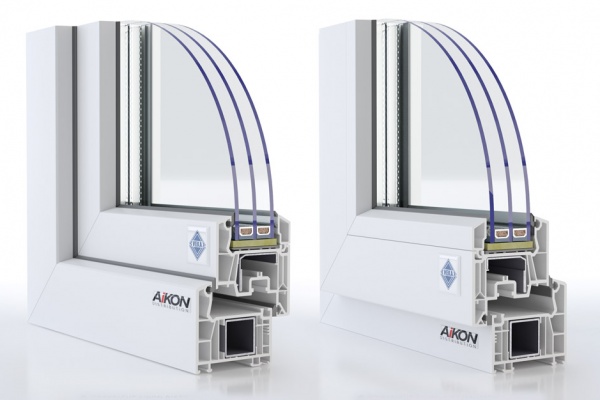

Triple-glazed windows
Triple-glazed, deep mounted unit provides efficient thermal and sound insulation. Despite high energy-efficiency parameters the lowered frame profile ensures optimum illumination of the room.
Solidity and security
Galvanized steel reinforcements with a thickness of 1.5-3 mm provide excellent stability of the windows and protection against burglary. High quality window hardware and deep mounting of glazing unit ensures that windows are extremely robust and resistant to weather and mechanical damage.
Windows with arches, triangular windows, trapezoids, circles
The Veka system allows the making of windows in unusual shapes. We have experience in the production of windows with arches and triangular, trapezoidal and round windows.
Veka windows - competitive price
To manufacture our Veka windows we work with carefully selected polish manufacturers. This ensures all our Veka windows are of the highest quality and offered at competitive price.
The price of Veka Softline 82 MD is custom calculated for each order.
uPVC made-to-measure windows
Our clients can specify dimensions, colours number of sashes and additional profiles. Variety of technical solutions enable production of large dimension windows undertaking the most sophisticated custom orders even when ordering just one window. In our offer you will also find timber sliding doors.
Want to know more about passive houses?
Read the article on our blog:
Images are for reference purposes only.
Installation depth
82mm
Number of chambers
7 chambers
Heat transfer coefficient
Uf = 1,0 W/m2*K
Profile class
A
Weather stripping
Central triple with EPDM, grey/black
Available pane fixations thicknesses
24 mm - 52 mm
Standard glazing
4/18Ar/4/18Ar/4 (Rw=32dB, Lt=71%, g=50%)
Standard handle
Hoppe Secustic
Steel thickness
1,5 - 2,0 mm (enclosed in a frame)
Dyed profile core for 2s colors
Yes: brown or caramel core
Warranty
5 years for the whole window
Certificates
CE
Order processing time
from 4 weeks
Additional parameters
Download technical drawings
Download our catalogue
The highest level of thermal insulation makes Veka Softline 82 MD a perfect solution for energy-efficient and passive buildings.
VEKA Softline 82 uPVC windows - class A profiles
All VEKA window profiles are classified according to PN-EN 12608 norm as the highest Class A. This classification confirms the thickness of the outer wall of the profiles of 3 mm (with a tolerance of 0.2 mm). Class A profiles perfectly protect against heat loss and noise and also increase the stability and durability of windows. According to the studies class A profile corners are 10-20% more resistant to damage.
Energy-efficient windows for passive houses
Excellent thermal insulation performance has been achieved through the use of 7-chambers, 82mm installation depth of profile. Thickness of profile walls is impressive 3mm. Heat transfer coefficient for the profile is rated at 1.0 W/m2*K, thermal insulation for the whole window can be increased to Uw = 0.85W/m2*K when the thickest available triple-glazed unit and a triple gasket made of high quality EPDM is used. Veka Softline 82 MD windows can be successfully used in passive buildings.
Triple-glazed windows
Triple-glazed, deep mounted unit provides efficient thermal and sound insulation. Despite high energy-efficiency parameters the lowered frame profile ensures optimum illumination of the room.
Solidity and security
Galvanized steel reinforcements with a thickness of 1.5-3 mm provide excellent stability of the windows and protection against burglary. High quality window hardware and deep mounting of glazing unit ensures that windows are extremely robust and resistant to weather and mechanical damage.
Windows with arches, triangular windows, trapezoids, circles
The Veka system allows the making of windows in unusual shapes. We have experience in the production of windows with arches and triangular, trapezoidal and round windows.
Veka windows - competitive price
To manufacture our Veka windows we work with carefully selected polish manufacturers. This ensures all our Veka windows are of the highest quality and offered at competitive price.
The price of Veka Softline 82 MD is custom calculated for each order.
uPVC made-to-measure windows
Our clients can specify dimensions, colours number of sashes and additional profiles. Variety of technical solutions enable production of large dimension windows undertaking the most sophisticated custom orders even when ordering just one window. In our offer you will also find timber sliding doors.
Want to know more about passive houses?
Read the article on our blog:
Images are for reference purposes only.
| Installation depth | 82mm |
| Number of chambers | 7 chambers |
| Heat transfer coefficient | Uf = 1,0 W/m2*K |
| Profile class | A |
| Weather stripping | Central triple with EPDM, grey/black |
| Available pane fixations thicknesses | 24 mm - 52 mm |
| Standard glazing | 4/18Ar/4/18Ar/4 (Rw=32dB, Lt=71%, g=50%) |
| Standard handle | Hoppe Secustic |
| Steel thickness | 1,5 - 2,0 mm (enclosed in a frame) |
| Dyed profile core for 2s colors | Yes: brown or caramel core |
| Warranty | 5 years for the whole window |
| Certificates | CE |
| Order processing time | from 4 weeks |
Additional parameters
Download technical drawings
Download our catalogue
