REHAU GENEO MD
Innovative Rehau GENEO MD system is the leader in the field of energy efficiency. The profile core is made of an extremely durable RAU-FIPRO material supported by fiberglass. Additionally the external layer is coated with high quality RAU-uPVC material.
Energy-efficient windows for passive buildings

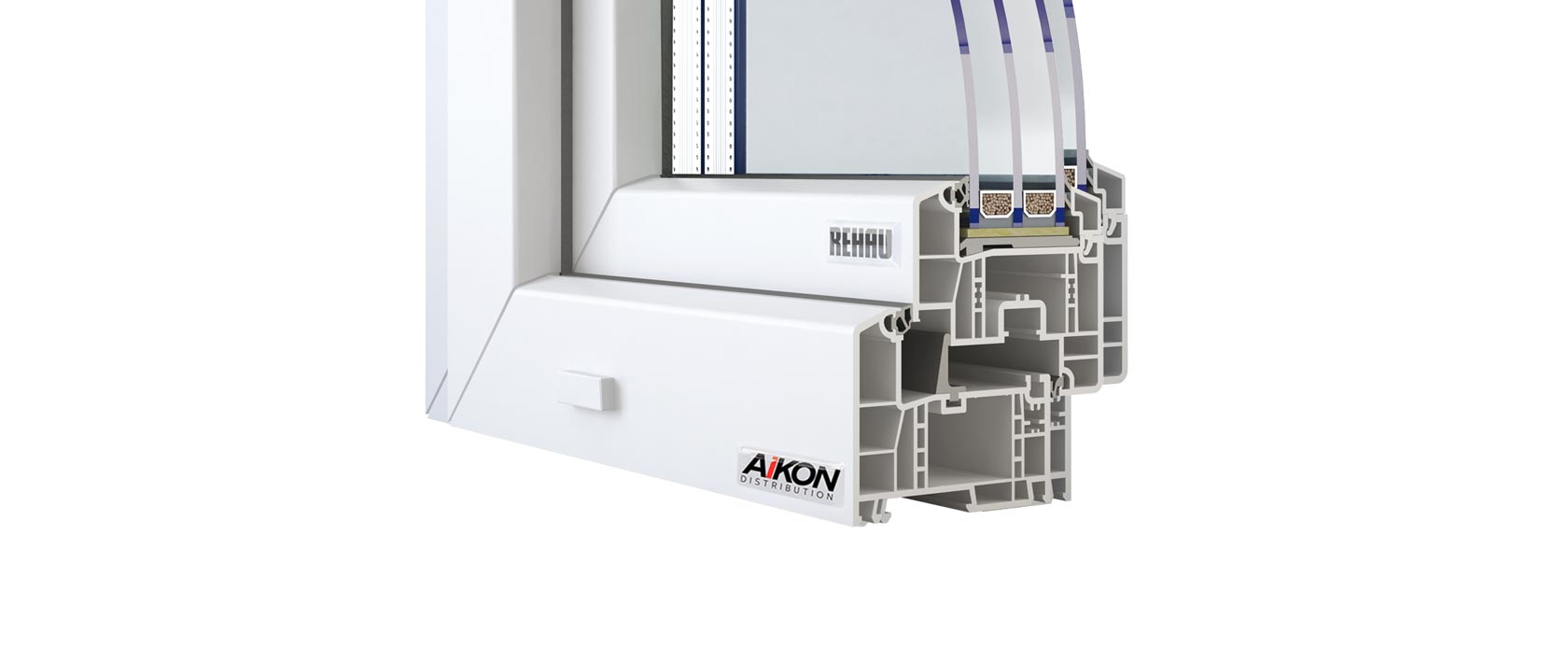

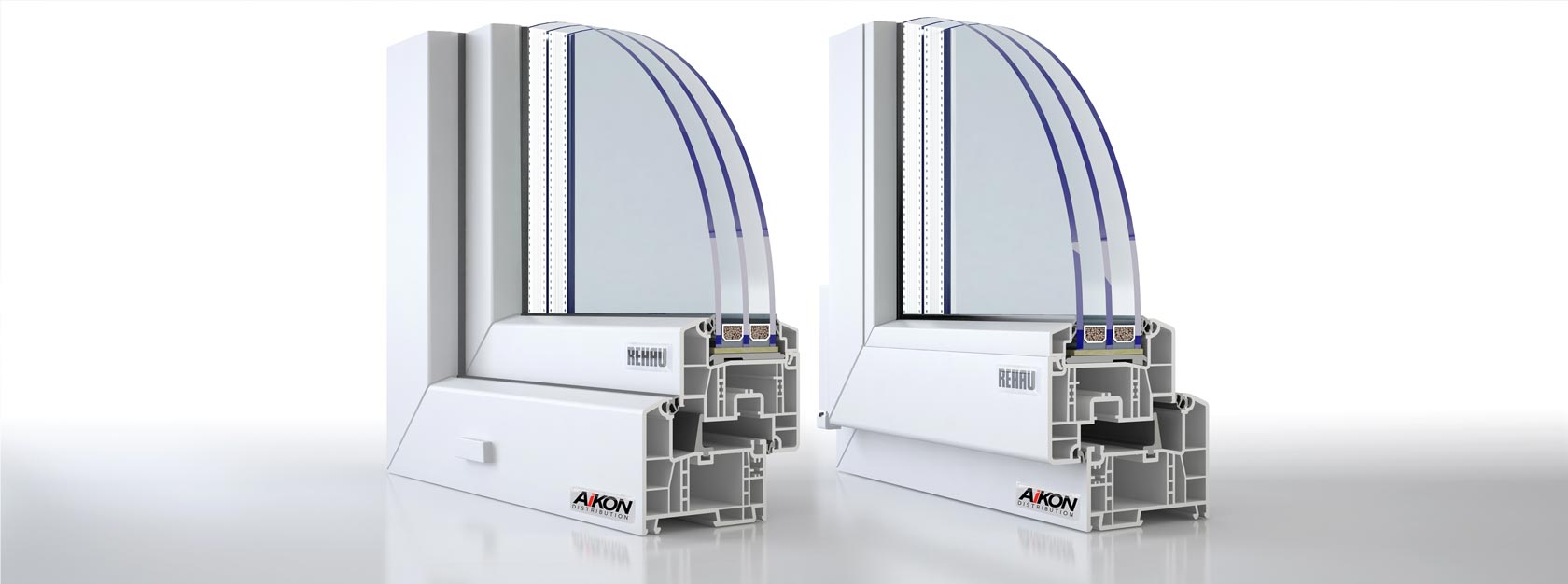

Window profile Rehau Geneo MD system represents unique energy-saving windows technology. Its 3mm thick profile walls allow Geneo MD to be classified as an A class window. A warm, 6-chamber, 86-mm deep profile is made of RAU-FIPRO material and is equipped with triple EPDM rubber sealing. This innovative material containing fiberglass offers very good static qualities and is resistant to deformation. RAU-FIPRO profiles do not require steel reinforcements to be used. Steel sections were reasons for occurrence of thermal bridges. Elimination of the steel reinforcements has allowed reduction of the heat transfer coefficient to Uf=0,91 w/m2*K. Additionally Rehau Geneo MD 86mm increased glazing surface of the profile ensures optimal room illumination.
Replacing old windows with Geneo MD - up to 76% energy saving
REHAU studies have shown that using Geneo MD windows you can reduce energy consumption up to 76%. The figures have been achieved by studying heat loss for referential window with dimensions of 1230x1480 and comparing the results of an old wooden window of heat transfer coefficient Uf=1,9 W/m2*K with the modern Geneo MD window.
Stylish and functional windows
Rich palette of colours and wide choice of additional profiles ensures this tripled-glazed window is easily customizable to individual requirements or installation and architectural needs.
Rehau Geneo MD - Solidity and security
Galvanized steel reinforcements of 1.5-2 mm thickness provide excellent statics of the windows and protection against burglary. High quality hardware and deep mounting of the glazing unit ensure windows are extremely robust and resistant to mechanical damage and various weather conditions.
Durable and easy-to-maintain windows
REHAU profiles are made of the best quality granulated uPVC which is environmentally friendly and can be recycled. Smooth surface of the profile - High Definition Finishing - allows easy maintenance and cleaning. Angled base of the frame rebate is considered as additional advantage of the window profile Rehau Geneo MD. This allows facilitating water drainage and helps keeping the windows clean.
Windows with arches, triangular windows, trapezoids, circles
The Rehau windows system allows the making of windows in unusual shapes. We have experience in the production of windows with arches and triangular, trapezoidal and round windows.
uPVC made-to-measure windows
Our clients can specify dimensions, colours number of sashes and additional profiles. Variety of technical solutions enable production of large dimension windows undertaking the most sophisticated custom orders even when ordering just one window.
Check Also: Rehau euro design 86 PLUS.
Images are for reference purposes only.
Product is temporarily unavailable. Contact the sales department:
Installation depth
86mm
Number of chambers
6 chambers
Heat transfer coefficient
Uf = 0,91 W/m2*K
Profile class
A
Weather stripping
Triple central with EPDM, grey/black
Available pane fixations thicknesses
24 mm - 52 mm
Standard glazing
4/12Ar/4/12Ar/4 (Rw=32dB, Lt=71%,
g=50%)
Standard handle
Hoppe Secustic
Steel thickness
Rau-Fipro
Dyed profile core for 2s colors
Yes: brown core under the veneer
Warranty
5 years color; 10 years white
Certificates
CE
Order processing time
from 3 weeks
Additional parameters
Download our catalogue
