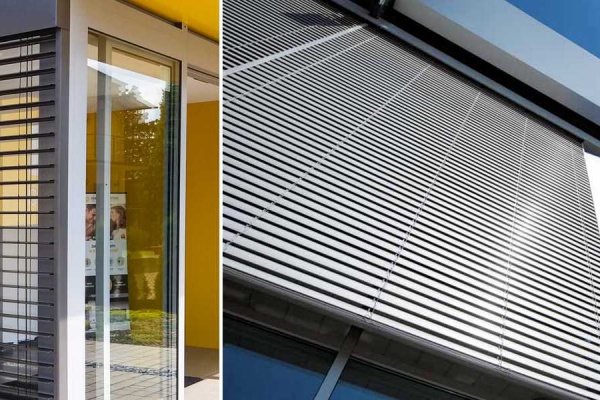

External venetian blinds
An innovative and modern external blinds solution, most often used for large, glazed window areas. External blinds allow controlling heat gain playing a major role in the thermal management of a building, preventing overheating and supporting air conditioning system.
Elegance and functionality
External venetian blinds add an aesthetic element and character to the façade of a building, offering enhanced shading of premises, limiting noise from the outside, and protect against weather factors.
Easy operation and installation
With its lightweight structure they are easy to use, offering remarkably simple installation. Slats are available in four shapes and widths: C-type (65 mm or 80 mm), Z-type (90 mm), S-type (70 mm) and F-type (80 mm). Slats can operate along steel cord or rail guides. External blinds are controlled manually, with a crank or automatically with an electric motor.
All slats operate in 90 degrees range, additionally C and F type slates may turn by 180 degrees.
Modern design
Possibility of coupling external blinds with weather auto detection system allows efficient management of the blinds and the way they operate being sensitive and responsive to wind and sunlight intensity.
Warranty
We offer 3 years guarantee for the product from the moment of order delivery and on the condition of proper use (motor drive guarantee: 5 years).
S70
Slat width
70 mm
Slat thickness
0,42 mm
Gutter at head width
58 mm
Gutter at head height
51 mm
Maximum width
4000 mm
Minimum width
600 mm
Maximum height
4000 mm
Maximum area (electric drive operated)
16 m2
Maximum area (manually operated)
9 m2
Weight of m2
3 kg
C80
Slat width
80 mm
Slat thickness
0,42 mm
Gutter at head width
58 mm
Gutter at head height
52 mm
Maximum width
4000 mm
Minimum width
600 mm
Maximum height
5000 mm
Maximum area (electric drive operated)
16 m2
Maximum area (manually operated)
16 m2
Weight of m2
3 kg
Z93
Slat width
93 mm
Slat thickness
0,42 mm
Gutter at head width
58 mm
Gutter at head height
52 mm
Maximum width
4500 mm
Minimum width
600 mm
Maximum height
5000 mm
Maximum area (electric drive operated)
16 m2
Maximum area (manually operated)
16 m2
Weight of m2
3 kg
Download the technical drawings
DOWNLOAD Assembly instructions
An innovative and modern external blinds solution, most often used for large, glazed window areas. External blinds allow controlling heat gain playing a major role in the thermal management of a building, preventing overheating and supporting air conditioning system.
Elegance and functionality
External venetian blinds add an aesthetic element and character to the façade of a building, offering enhanced shading of premises, limiting noise from the outside, and protect against weather factors.
Easy operation and installation
With its lightweight structure they are easy to use, offering remarkably simple installation. Slats are available in four shapes and widths: C-type (65 mm or 80 mm), Z-type (90 mm), S-type (70 mm) and F-type (80 mm). Slats can operate along steel cord or rail guides. External blinds are controlled manually, with a crank or automatically with an electric motor.
All slats operate in 90 degrees range, additionally C and F type slates may turn by 180 degrees.
Modern design
Possibility of coupling external blinds with weather auto detection system allows efficient management of the blinds and the way they operate being sensitive and responsive to wind and sunlight intensity.
Warranty
We offer 3 years guarantee for the product from the moment of order delivery and on the condition of proper use (motor drive guarantee: 5 years).
S70
| Slat width | 70 mm |
| Slat thickness | 0,42 mm |
| Gutter at head width | 58 mm |
| Gutter at head height | 51 mm |
| Maximum width | 4000 mm |
| Minimum width | 600 mm |
| Maximum height | 4000 mm |
| Maximum area (electric drive operated) | 16 m2 |
| Maximum area (manually operated) | 9 m2 |
| Weight of m2 | 3 kg |
C80
| Slat width | 80 mm |
| Slat thickness | 0,42 mm |
| Gutter at head width | 58 mm |
| Gutter at head height | 52 mm |
| Maximum width | 4000 mm |
| Minimum width | 600 mm |
| Maximum height | 5000 mm |
| Maximum area (electric drive operated) | 16 m2 |
| Maximum area (manually operated) | 16 m2 |
| Weight of m2 | 3 kg |
Z93
| Slat width | 93 mm |
| Slat thickness | 0,42 mm |
| Gutter at head width | 58 mm |
| Gutter at head height | 52 mm |
| Maximum width | 4500 mm |
| Minimum width | 600 mm |
| Maximum height | 5000 mm |
| Maximum area (electric drive operated) | 16 m2 |
| Maximum area (manually operated) | 16 m2 |
| Weight of m2 | 3 kg |
